Distribution Box

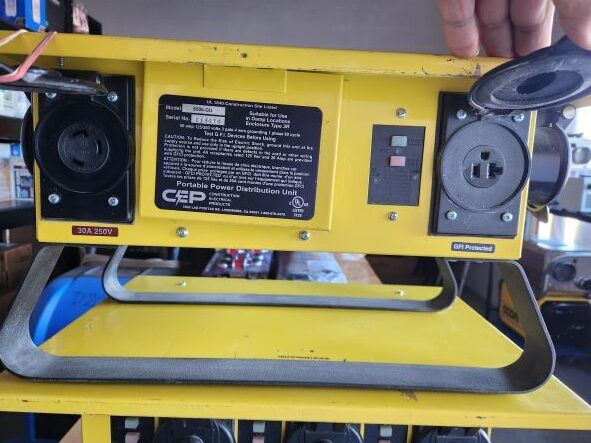

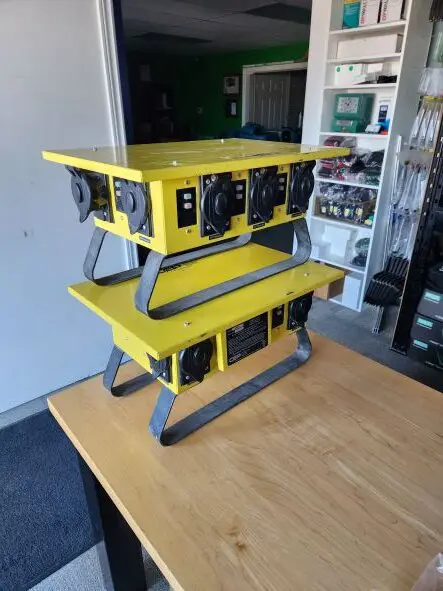

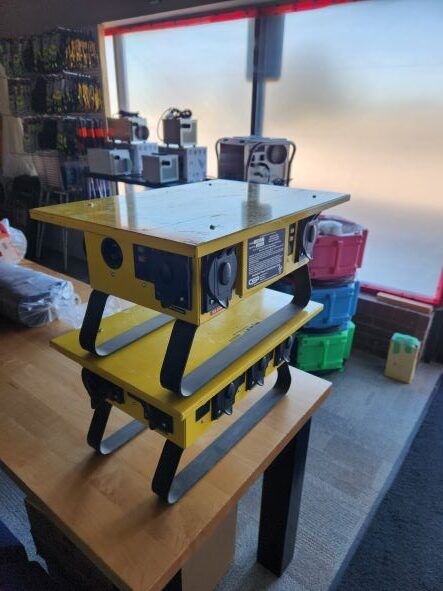

CEP’s Portable Power Distribution Centers (Temp Power Boxes) have been engineered utilizing the latest in GFCI technology, providing the user with the highest level of electrical safety. These power distribution centers are protected by a GFCI module giving the user not only ground fault protection, but also open neutral and reverse phasing protection. They are listed to UL1640 standards for portable power distribution and designed to stand up to the toughest of jobsite conditions. Each unit has been carefully assembled to provide the ultimate in electrical safety as well as meeting current OSHA standards.
PRODUCT DETAILS
- Outlet Type: Twist Lock
- Outlet Description: Classic 6 Outlet Twist Lock
- Power Inlet: 50A 125/250V CS6375H
- Power Outlet: 50A 125/250V CS6369H

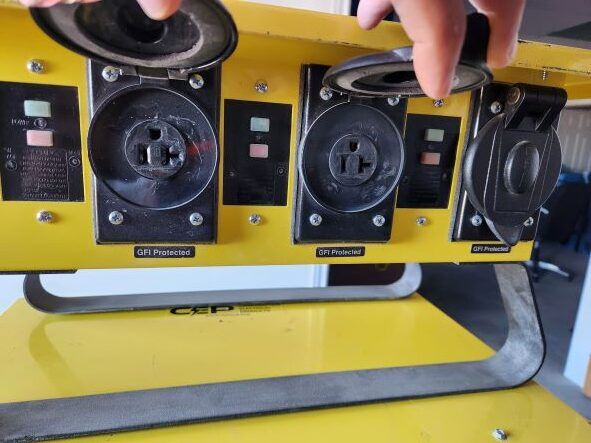

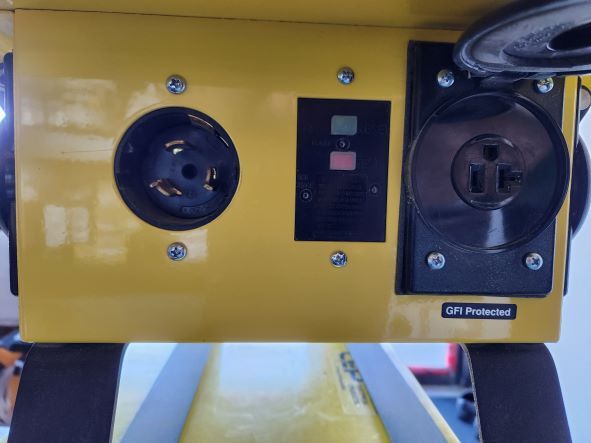

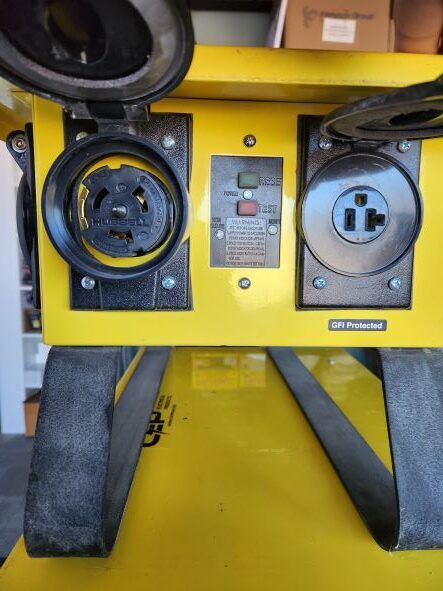

- Receptacles: 6ea. L5-20R 1 ea. L6-30R
- GFCI: Yes
- GFI Specs: 4-6 milliamp trip level, <25 milliseconds trip time
- Construction: Powder Coated Steel
- Feed-Through: Yes
- 3R-Rated: Yes
- Volts: 125/250V
- AMPS: 50amps
Individual Unit Dimensions
- Length: 21
- Width: 14.5
- Height: 11
- Weight: 29lbs
